Description

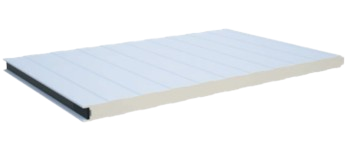

Insulating wall panel PW 1000 with visible louvres and visible fixing.

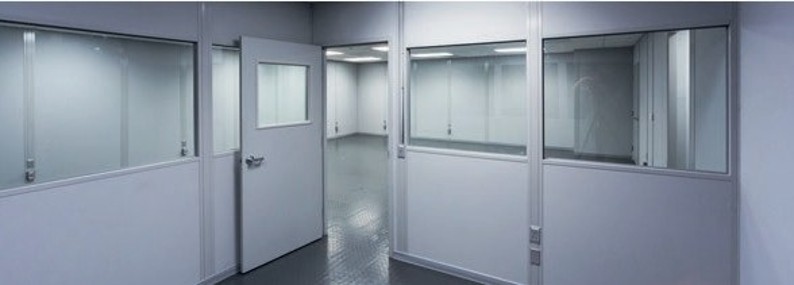

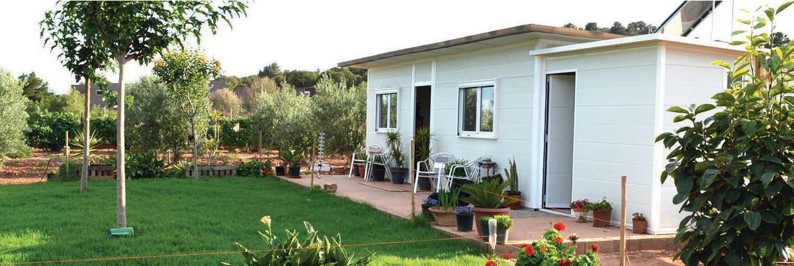

For wall/wall, facade and prefabricated applications. Can be used in vertical or horizontal position.
horizontal.
It is characterised by the symmetry of the cross-section and the simplicity of the male/female fit.

It consists of two profiled steel sheets interconnected by rigid foam insulation.
Polyurethane (PUR B3, PUR B2) or Polyisocyanurate (PIR), providing an excellent
mechanical behaviour and the highest thermal insulation.
It is manufactured with a usable width of 1000 mm, with an outer surface that can be either grooved or
Micro-profiled or ribbed or smooth, as well as the surface of the inner side. Fits laterally with
other panels to cover a surface.
Fixing is carried out by means of an external support or with a self-drilling screw in the area of the
encounter between panels.

Dimensions:

Thicknesses: - 30, 40, 50, 50, 60, 80 and 100 mm
Tolerance ± 2 mm
Useful width: - 1000 mm
Tolerance ± 2 mm
Length: According to customer request and subject to the following limits:
- Minimum: 4,000 mm
- Maximum: 20,000 mm (on request from 10,000 mm)

Tolerance ± 10 mm

Base materials:

METAL SUPPORT
- Rolled steel (EN 508; EN 10143), galvanised (EN 10346) and prepainted (EN 10169)
Note: steel thickness on request.
COATING
- Standard: 5 µm primer + 20 µm polyester paint
- For special applications (1)
: PVDF, HDX, PET
Suitable for the food industry
(1)On request

INSULATION CORE
- Polyurethane rigid foam - PUR B3, non-flammable class PND*.
- Polyurethane rigid foam - PUR B2, reaction to fire class B s2 d0
- Polyisocyanurate rigid foam - PIR, with reaction to fire class B s1 d0
- Average density: 40 kg/m3 ± 10%
- Thermal conductivity λ= 0,025 W/m.K
- CFC-free foam
Mechanical characteristics:
Adhesion (tensile strength on substrate) > 0,018 Mpa
Compressive strength for 10% deformation > 0.100 Mpa
