Description

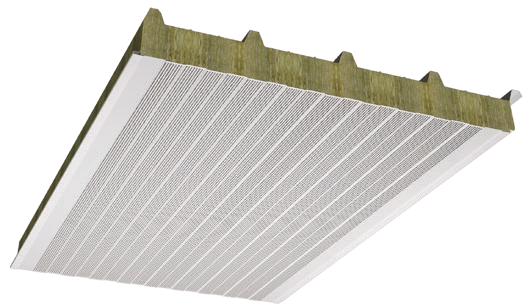

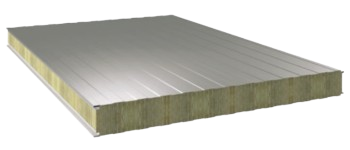

It consists of two profiled steel sheets interconnected by high-density rock wool insulation, forming a panel with a useful width of 1,000 mm.
It fits laterally with other panels by means of a tongue and groove system, guaranteeing an airtight seal.

The fastening is done by means of visible screws, placed in the upper part of the ribbing to ensure optimal fastening.

Dimensions:

Thicknesses:

40, 50, 60, 75, 80, 80, 100, 120 and 150 mm
Measurements according to reference. Tolerance ± 2 mm

Useful width:

1,000 mm

Tolerance ± 2 mm

Length:
According to the customer's request and subject to the following limits:

Minimum: 2,400 mm* Minimum: 2,400 mm* Minimum: 2,400 mm* Minimum: 2,400 mm* Minimum: 2,400 mm

Maximum: up to 13,500 mm*.
(on request from 6,000 mm)** (on request from 6,000 mm)** (on request from 6,000 mm)**.
Tolerance ± 10 mm
**Special lengths require prior validation.

Base Material:

METAL SUPPORT

- Rolled steel (EN 508; EN 10143), galvanised (EN 10346) and prepainted (EN 10169)
Note: steel thickness on request.

COATING

- Standard: 5 μm primer + 20 μm polyester paint

- For special applications (1): PVDF, HDX, FoodSafe (indoor)
(1) On request

INSULATION CORE

- High-density rock wool, reaction to fire class A2-s1,d0

- Average density: 100-150 kg/m³ ± 10%

- Thermal conductivity λ = 0,038 W/m-K

- Non-hydrophilic and CFC-free material

Mechanical characteristics:

- Adhesion (tensile strength on substrate): > 0,018 MPa

- Compressive strength for 10% deflection: > 0.100 MPa
